| Project Information | |||||
| Company | Country | Philippines | Year | 2026 | |
Equipments Info: | |||||
| Chicken type: | Broiler | Harevest weight(kg): | 1.9 | Capacity/birds: | 123648 |

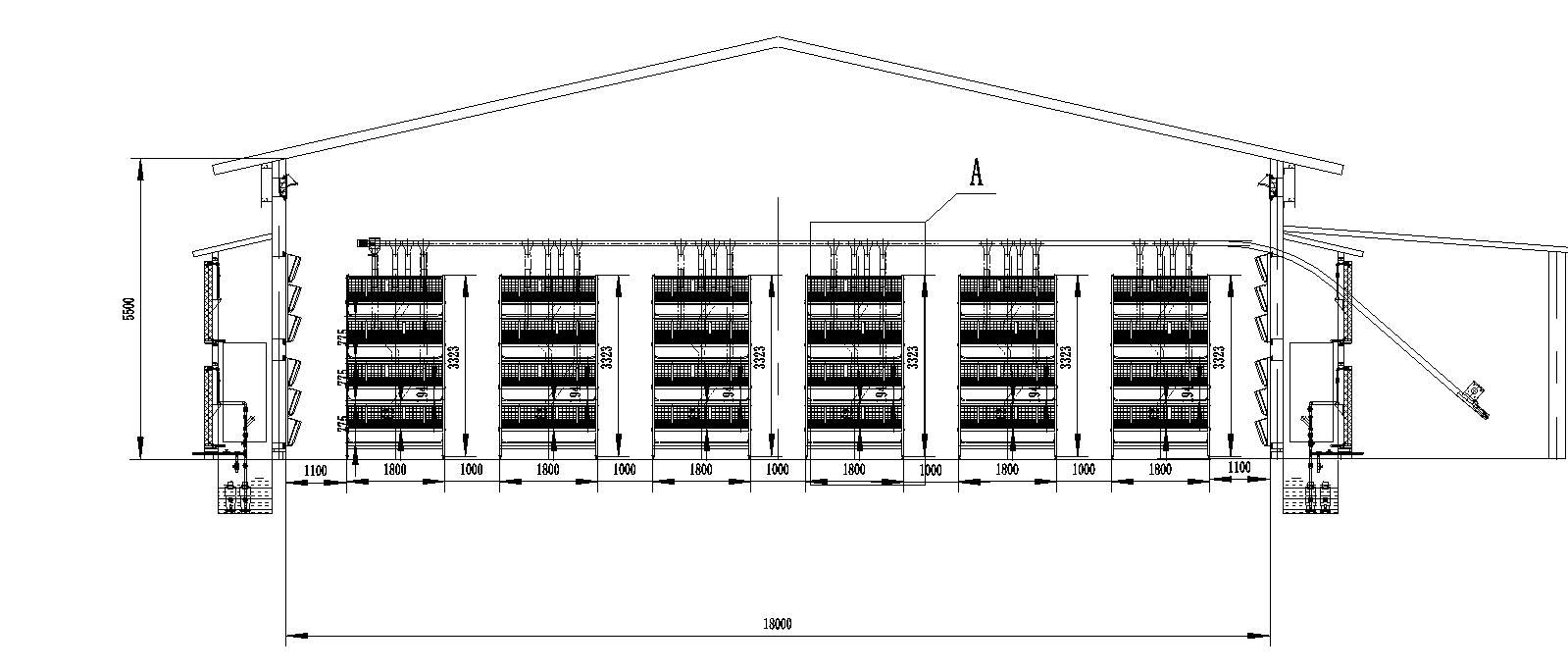

| Tiers: | 4 | Rows | 6 | Cage size | 1700×1800×450mm |
| Feeding type: | Pan feeding | Harevest type: | manual pulling bottom net, automatic chicken harvesting by conveyor. | ||
| Including: | 1. Chicken cage unit section | 2.Manure cleaning, transmission and tensioning system | |||
| 3.Drinking system | 4.Feeding system | ||||
| 5.Ventilation and cooling system | 6.Lighting system | ||||
| 7.Chicken Harvesting System | 8.Electronic control system | ||||
| 9.Diesel Heater system | 10.Installation tool & Spare parts | ||||
House Info: | |||||
| Size | 110m*18m*4.2m | Wind speed | 250km/h | Roofing | 0.5mm corrugated sheet |

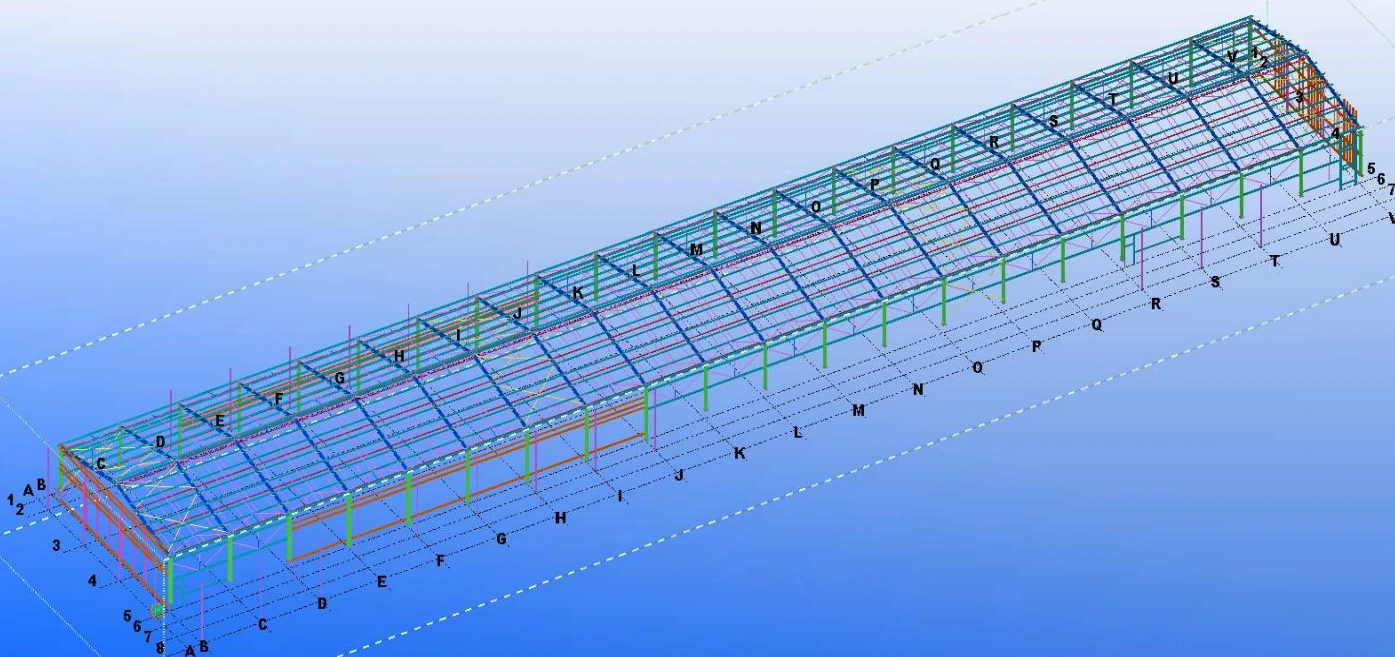

| Structure | H&I steel | Paint | Alykd paint | Purline | C purline |
| Ceiling | 0.4mm corrugated sheet+50mm fiber glass wool insulation | Wall | 50mm PU sandwich panel | Brick wall | 0.5m |
| Columns | Exposed | Roof drainage | natural drainage | Doors | Insulation door with Zn-Al-Mg panel |

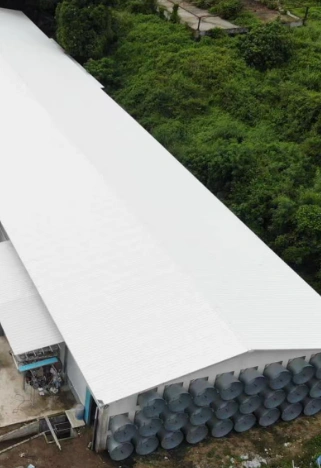

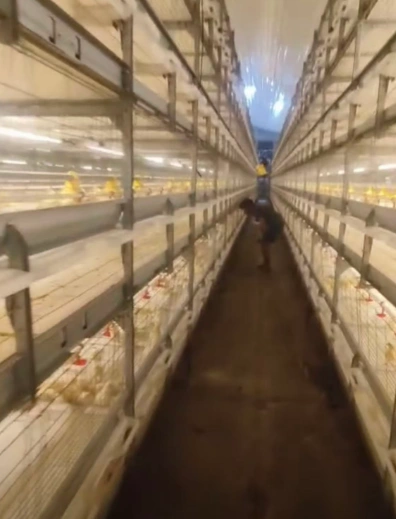

| Project Pictures | |||||
| |||||
