| Project Information | |||||
| Company | Country | Philippines | Year | 2023 | |
Equipments Info: | |||||
| Chicken type: | Broiler on ground | Dimension | 142m*16m*2.45m | Capacity/birds: | 44100 |
| feeding weight density(kg/m2) | 35 | Harevest Chicken weight(kg): | 2 | ||
| Number of feed lines ( lines): | 6 | Number of water lines ( lines): | 7 | ||
| Including: | 1,Main feed line conveying system 2, Silo System 3, Secondary feed line conveyor system | ||||
House Info: | |||||
| Size | 142mx16mxH4.2m | Wind speed | 250km/h | Roofing | 0.4mm corrugated sheet |
| Structure | H&I steel | Paint | Alykd paint | Purline | C purline |
| Ceiling | 0.4mm corrugated sheet+100mm fiber glass wool insulation | Wall | 50mm EPS sandwich panel | Brick wall | 0.5m |
| Columns | Exposed | Roof drainage | 1m eave overhang | Doors | Insulation door |

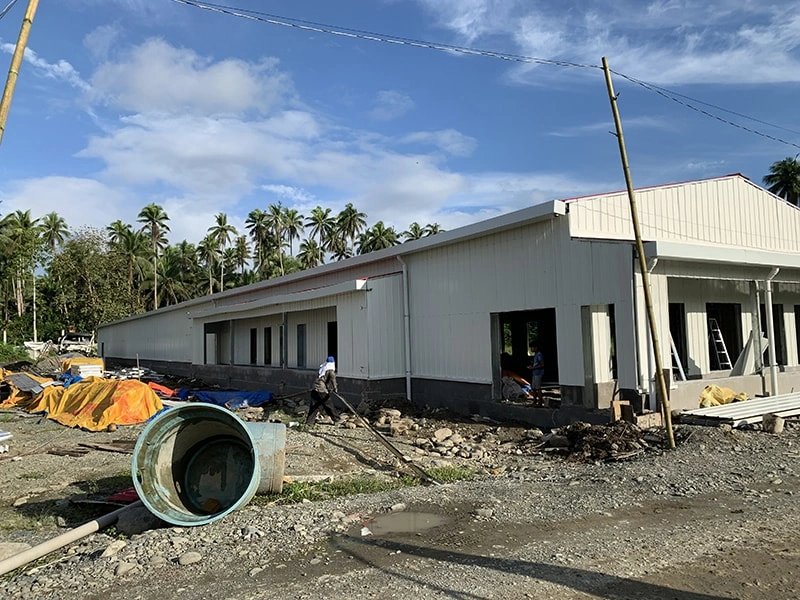

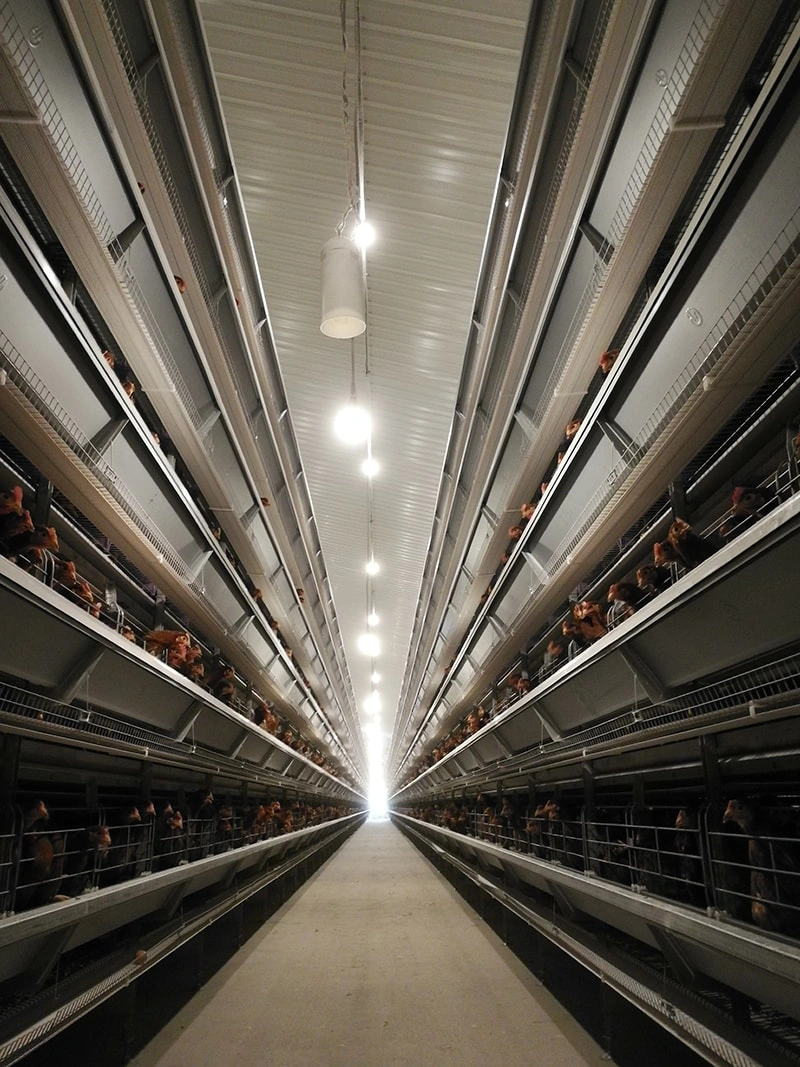

| Project Pictures | |||||
| |||||
