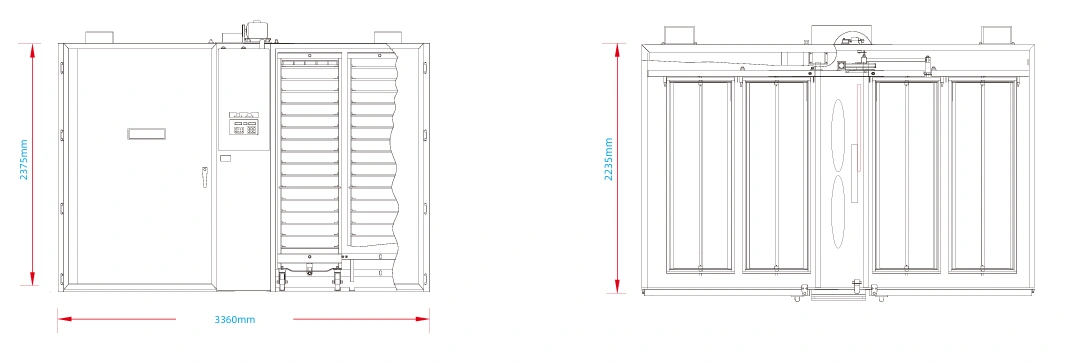

| Series & Model | Capacity (Pcs) | Trolley qty × loaded egg qty | Dimensions（W×D×H）mm | Suitable for hatching egg size (g) | Apparent power (kW) | ||
| Setter | Chick | EIFDMS 9600 | 9600 | 2×4800 | 1955×2235×2375 | 50-75 | 4.84 |
| Chick | EIFDMS 19200 | 19200 | 4×4800 | 3360×2235×2375 | 5.84 | ||
| Pigeon&quail | EIFDMS S22528 | 22528 | 4×5632 | 30-50 | |||
| Duck | EIFDMS Y12096 | 12096 | 4×3024 | 70-110 | |||
| Goose | EIFDMS E8640 | 8640 | 4×2160 | 100-150 | |||
| Hatcher | Chick | EICDMS 9600 | 9600 | 2×4800 | 1955×2235×2375 | / | 4.66 |
| Chick | EICDMS 19200 | 19200 | 4×4800 | 3360×2235×2375 | 5.66 | ||
| Duck | EICDMS Y12096 | 12096 | 4×3024 | 3360×2235×2375 | |||
| Goose | EICDMS E8640 | 8640 | 4×2160 | 3360×2235×2375 | |||
Temperature control range: 34.2°C~39.5°C
Humidity control range: 40%~70%RH
Display resolution for temperature: 0.01°C
Egg-turning angle: 43°+2°(F or ducks: 50°+2°)
|
|
|

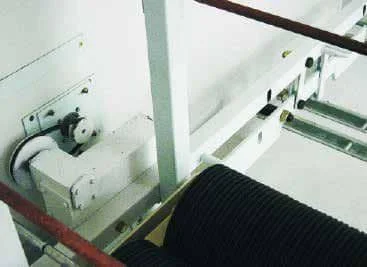

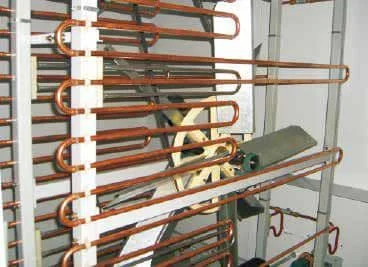

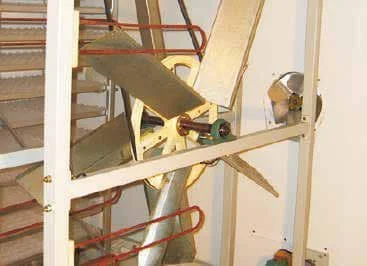

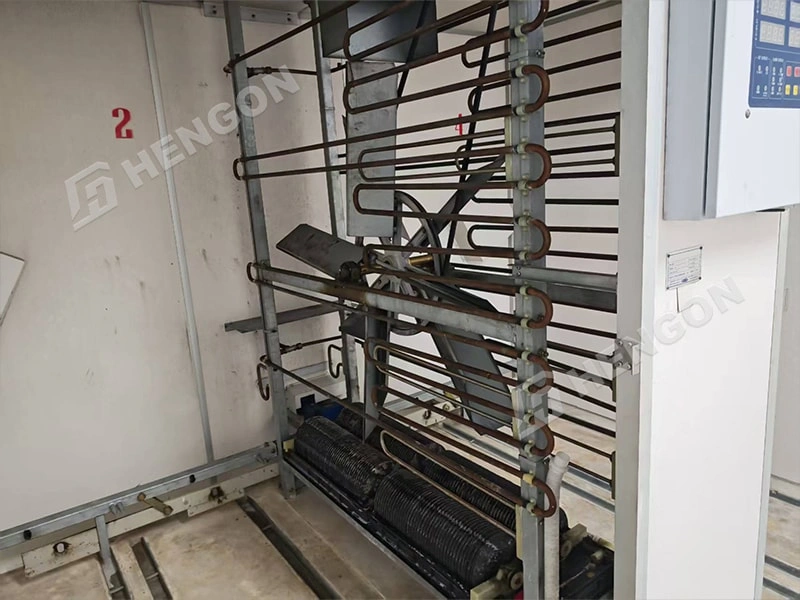

Fan system | Water heating system | Egg turnover system |
|
|
|

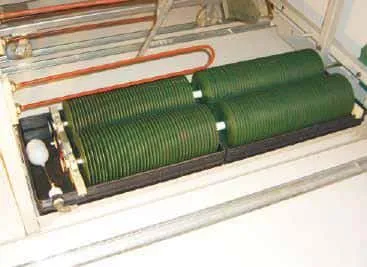

Humidifying system | Temperature and humidity sensor | Damper air inlet |
